Endo File Removal System – Root Canal Broken File Extractor Kit
Make difficult broken file removal more controlled and efficient. This complete endodontic system combines specialized drills, cannulas and a precision handpiece to help dentists access, clamp and remove fractured root canal files with a more streamlined workflow. Reusable and autoclavable, it provides multiple instrument sizes in one organized kit for challenging endodontic cases.
Main point: One complete system instead of searching for multiple separate instruments — saving time and simplifying difficult endodontic procedures.
Key Features
- Broken File Removal System – Designed specifically for removal of fractured root canal instruments.
- Microscope-Compatible Workflow – Can be used under a dental microscope for controlled access and visualization.

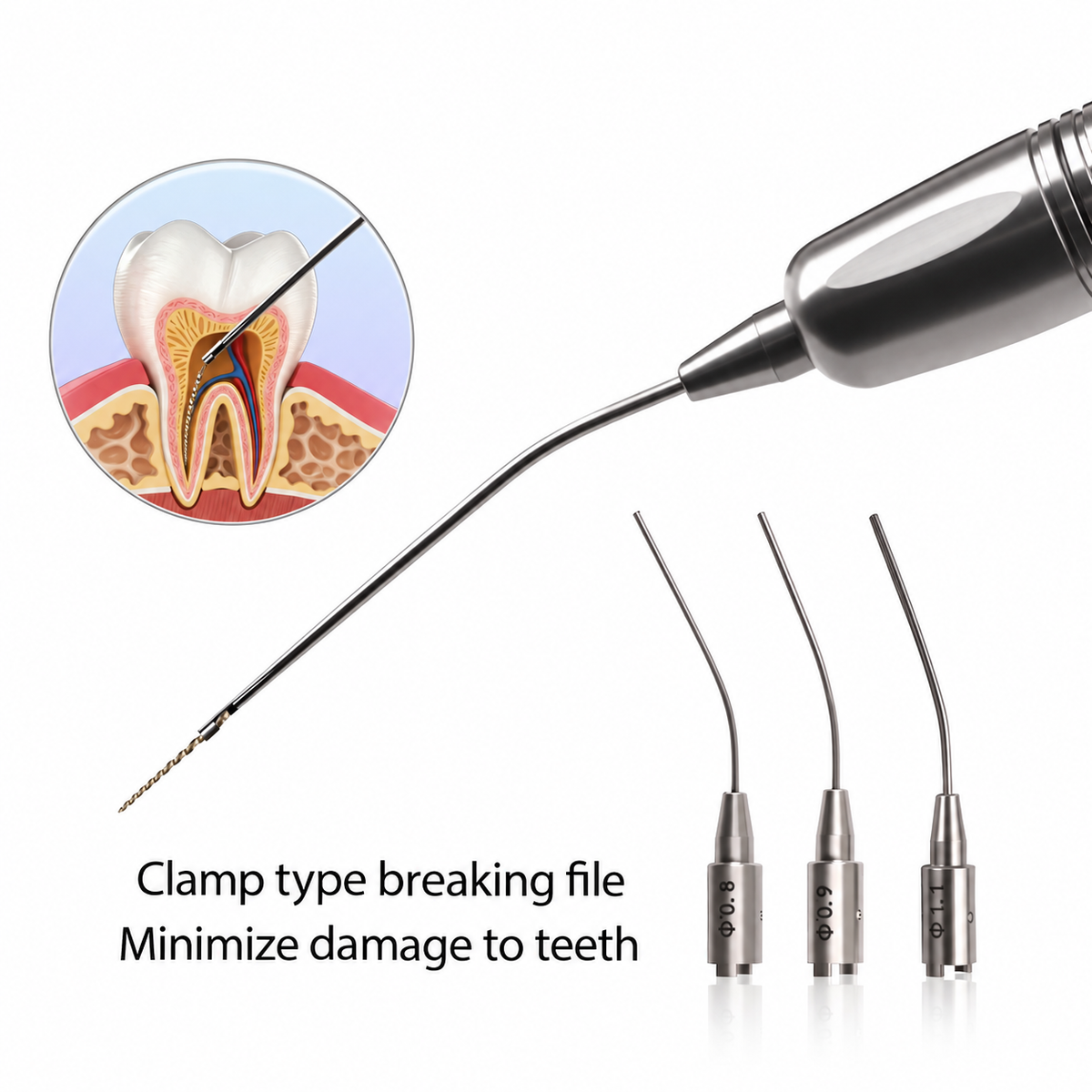

- Controlled File Extraction – Clamping mechanism securely engages the exposed fractured file for removal.
- Multiple Cannula Sizes – Different needle and cutting cannulas accommodate different file and canal dimensions.
- NiTi Path Drills – Help create the required access channel around the fractured instrument.
- Adjustable Access Angle – The bending wrench allows adjustment of the clamping sleeve angle from the factory-set position up to 90°.
- Reusable Stainless-Steel System – Designed for repeated clinical use and re-sterilization.

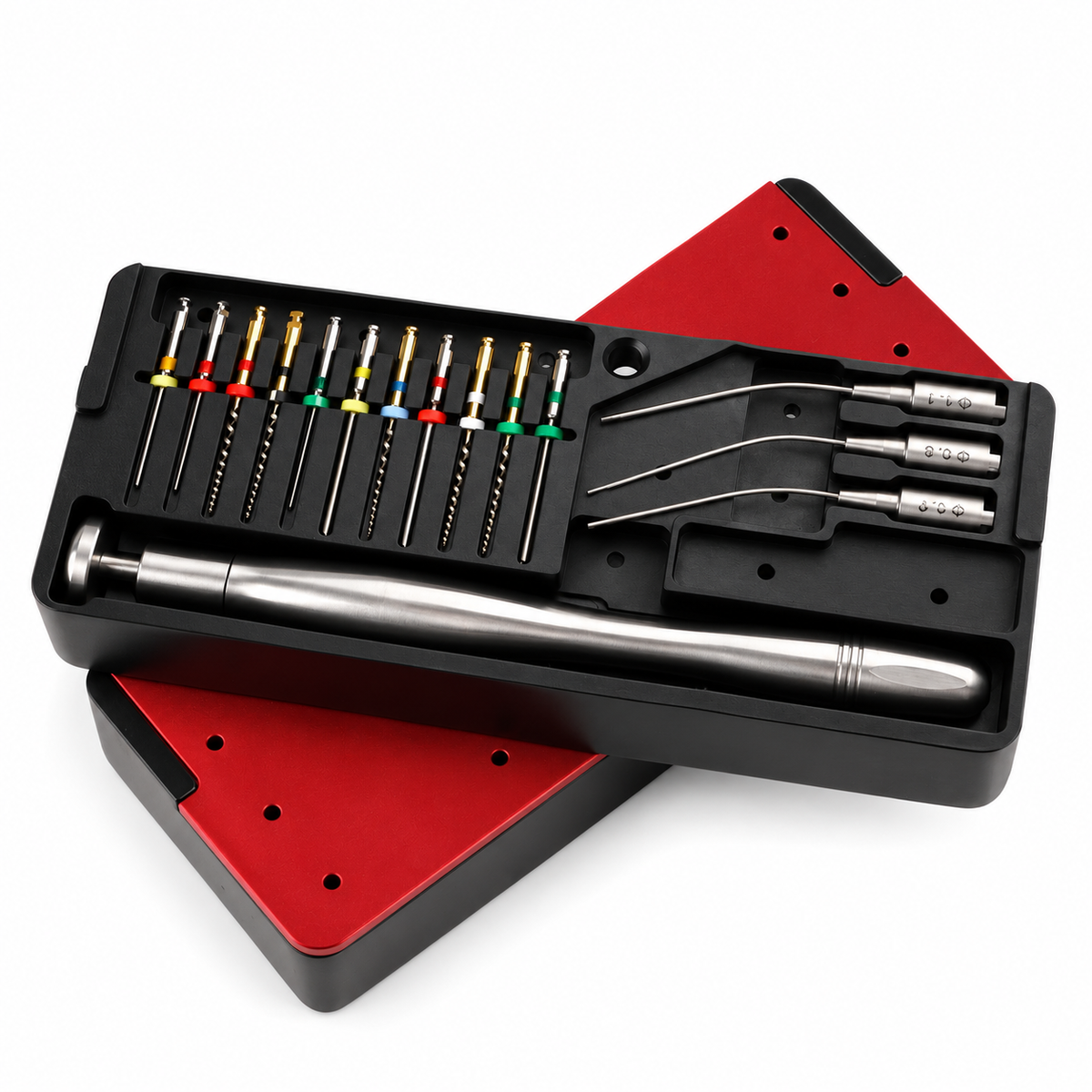

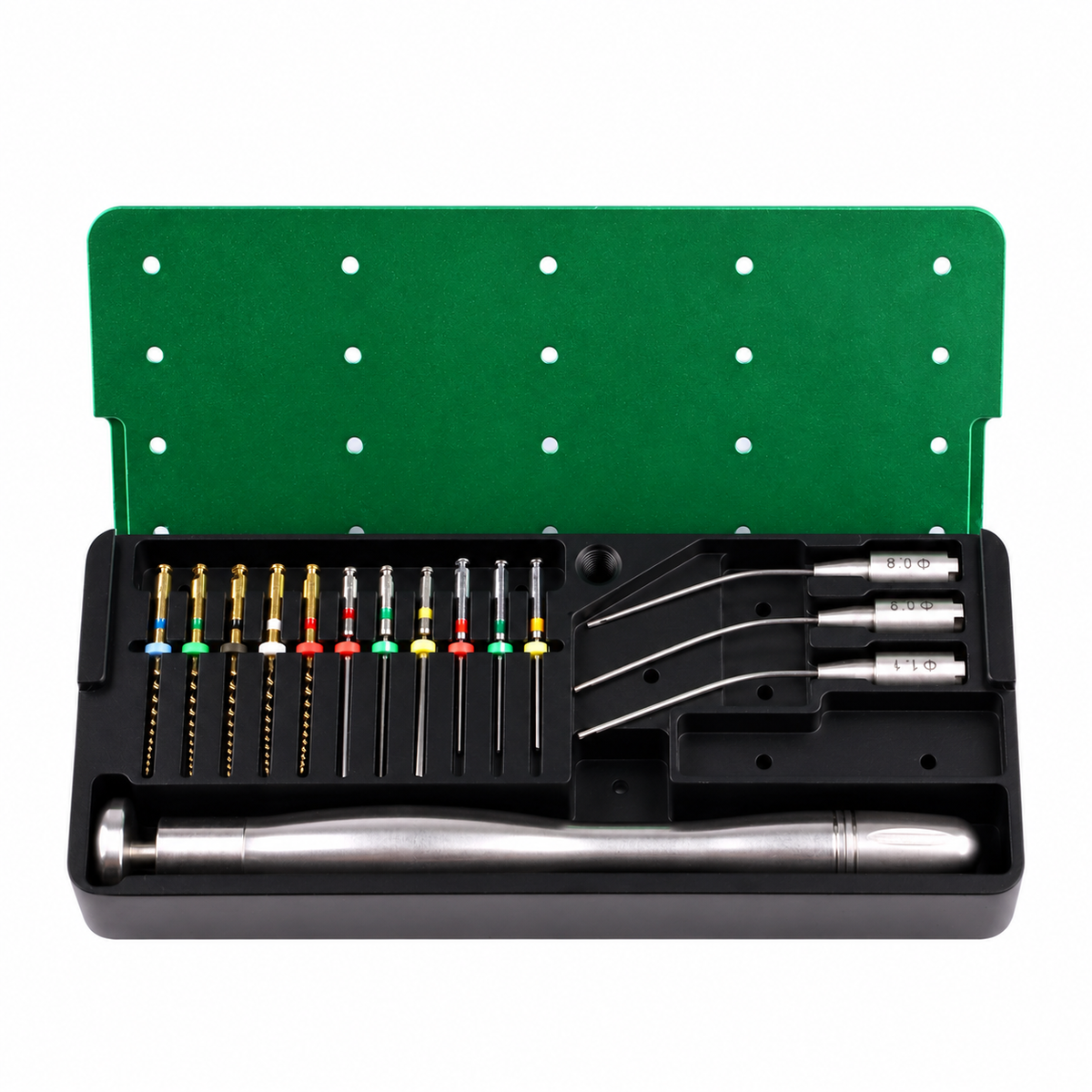

- Complete Extraction Kit – Includes the handpiece, cannulas, NiTi drills, actuation lever, sterilization box, and mounting screws.

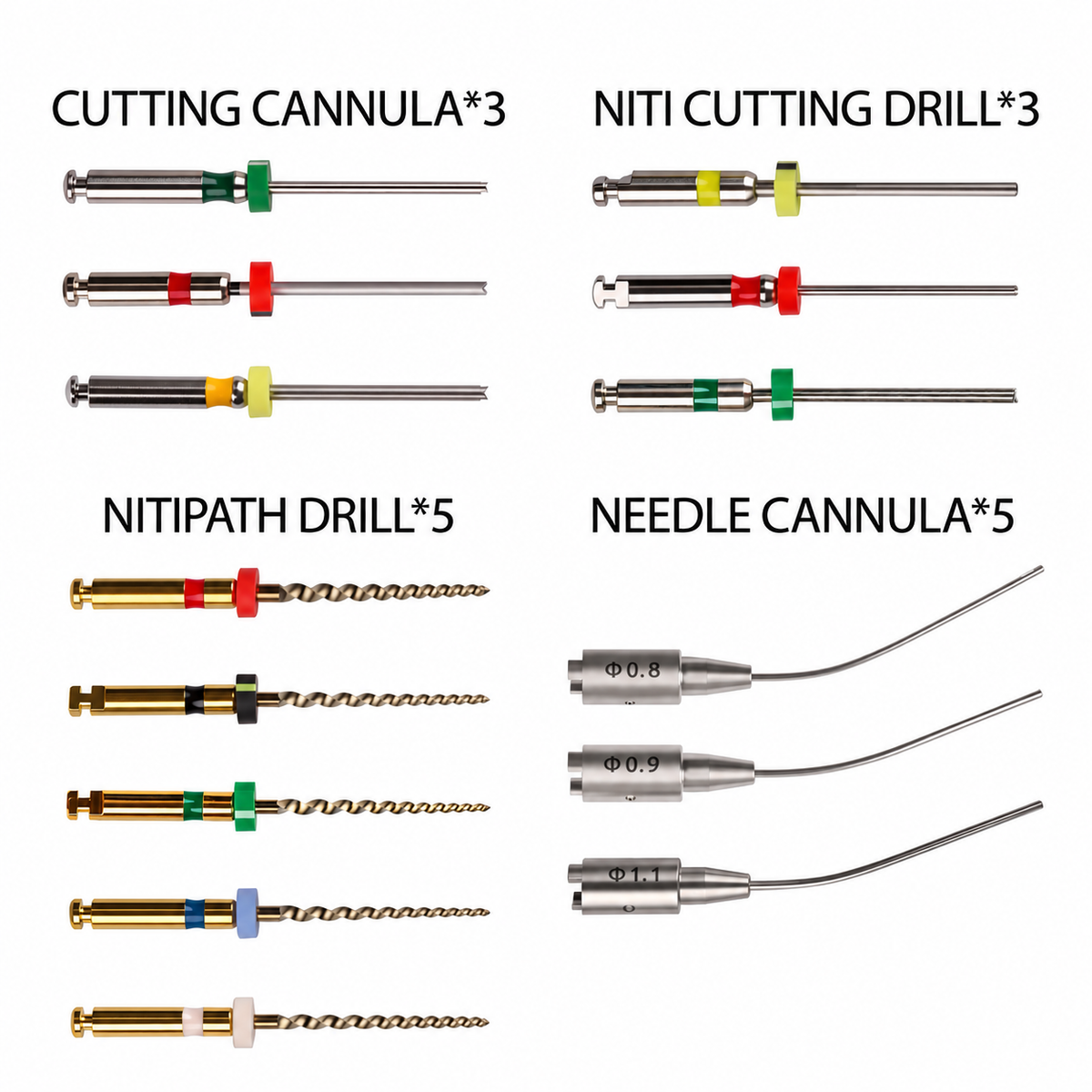

Package Includes:

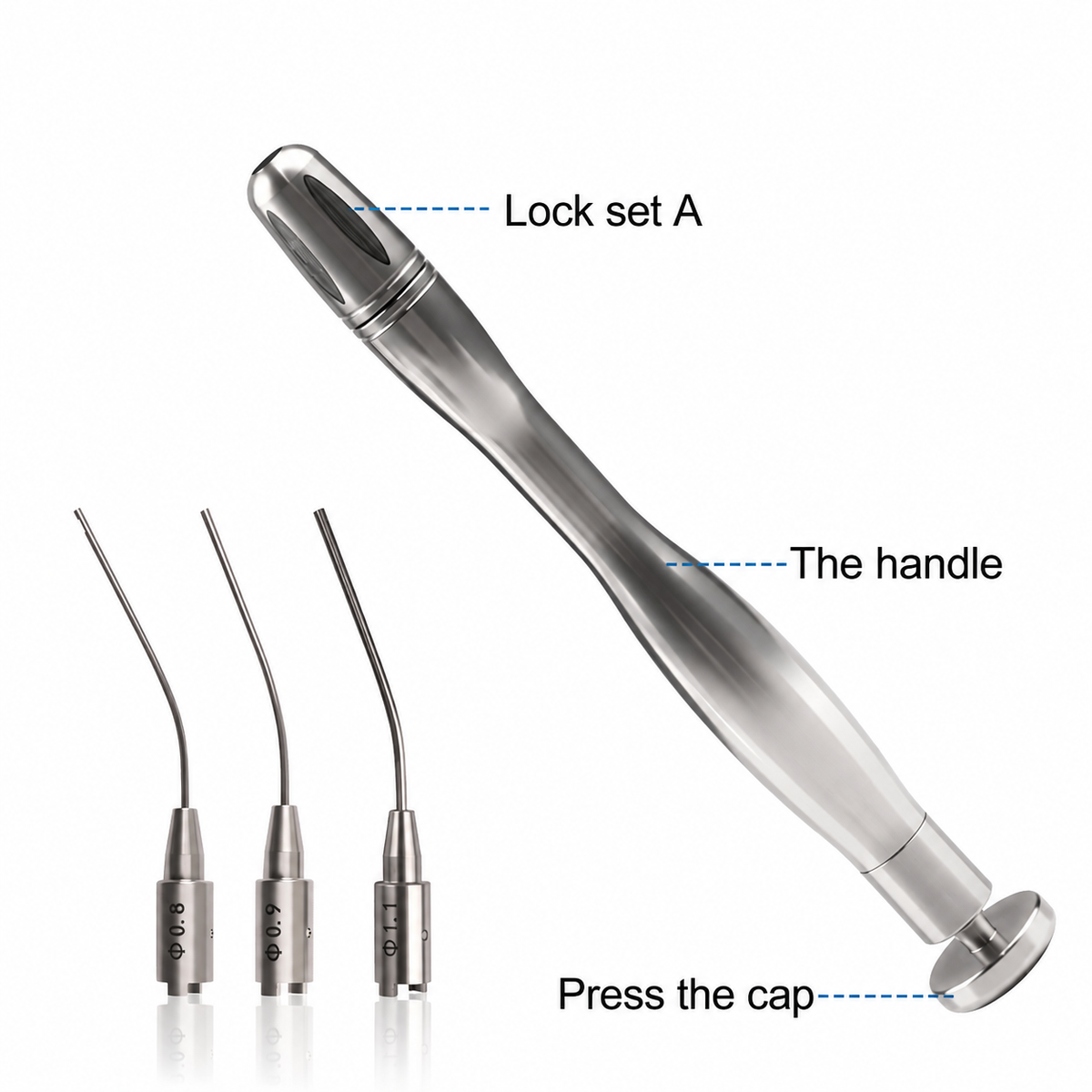

- Handpiece ×1

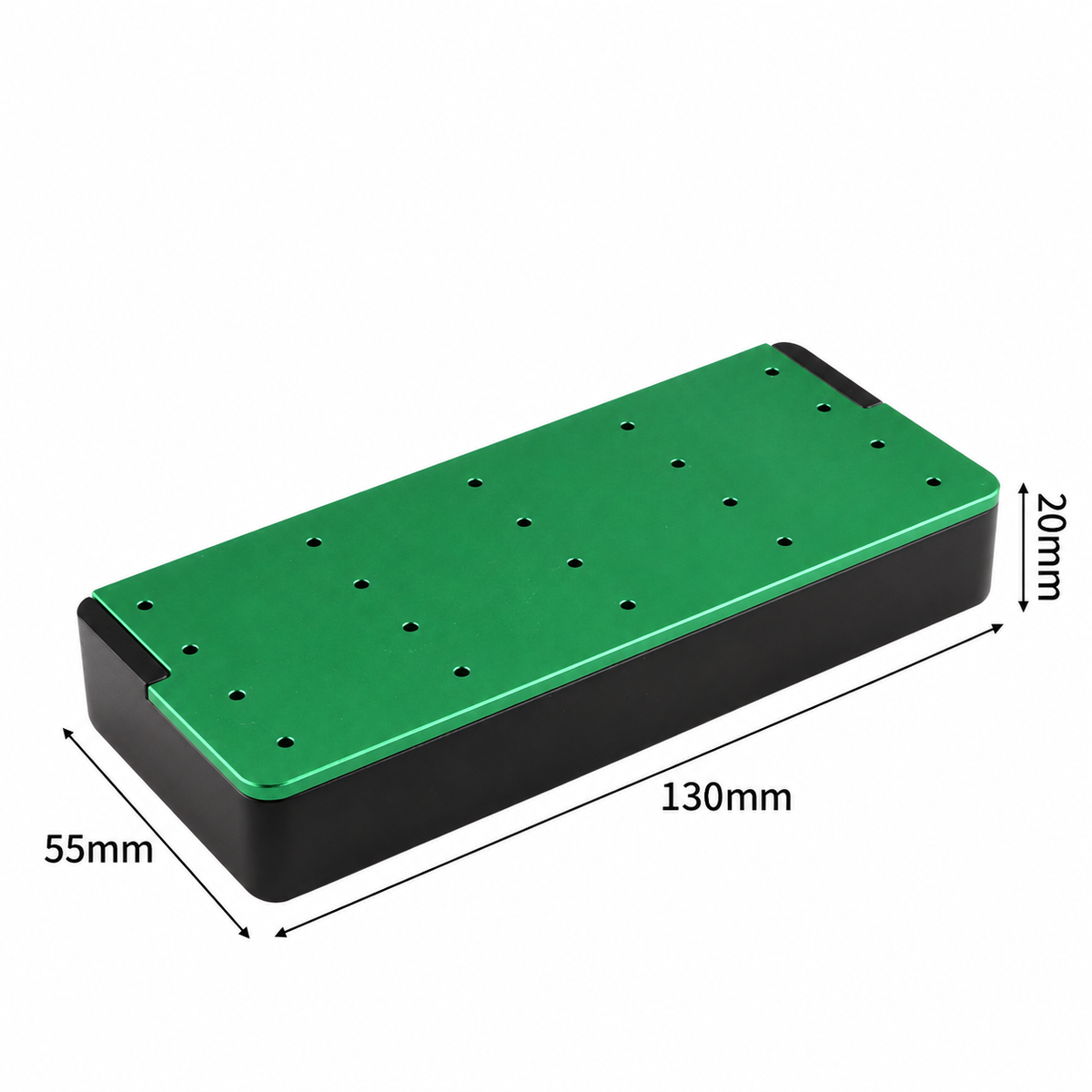

- Sterilization Box ×1
- Instructions for Use ×1
- Cutting Cannulas ×3
- NiTi Cutting Drills ×3
- Needle Cannulas ×3
- NiTi Path Drills ×5
- Actuation Levers ×2
- Mounting Screws ×2
Technical Specifications:
- Product Type: Endodontic File Removal System
- Application: Fractured Root Canal File Removal
- Material: Stainless Steel
- Use: Reusable
- Microscope Use: Supported
- Adjustable Sleeve Angle: Up to 90°
- Pin Diameters: 0.45 mm / 0.55 mm / 0.60 mm
- Cutting Drill Sizes: Ø0.8 / Ø0.9 / Ø1.1 mm
- Path Drill Sizes: 60.04 / 70.03 / 80.02 / 90.02 / 110.01
- Sterilization: Autoclaving recommended
- Sterilization Condition: 134°C for at least 5 minutes
- Re-sterilization: At least 250 cycles
- Warranty: 12 months for the handpiece
